4405HS4″ Sch 40 Radon / Vapor Floor Seal

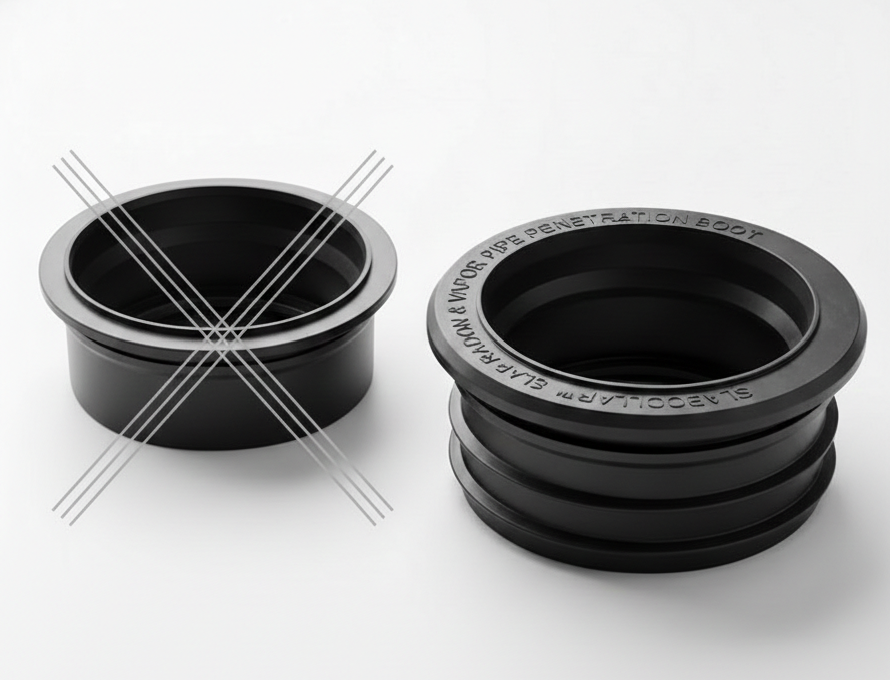

Two SlabCollar radon pipe seals, black EPDM rubber

Radon Mitigation System Component

SlabCollar™

One boot. Four seals. Zero sealant.

Compression-fit EPDM floor seal for 4″ Sch 40 radon and vapor mitigation pipe penetrations.

SlabCollar replaces field-applied sealants with a repeatable, inspectable, compression-fit boot that seals the pipe, the hole, and the slab surface in a single installation step, with no adhesive and no cure time.

Part No 4405HSPipe 4″ Sch 40 PVC/ABSMaterial EPDM
Labelled cutaway of SlabCollar in a cored concrete slab, with a pipe pushed down onto its internal ledge.
The pipe stops on the internal ledge, about 2″ below the floor surface, with its end inside the hole.The Four Seals →
01

Why Mitigators Use SlabCollar

Cut the hole, drop it in. Sealed, no caulk, foolproof.

No callbacks for leaks

The seal doesn't depend on a caulk bead, and on hundreds of installs it has sealed every time so far.

Holds the pipe for you

An internal ledge stops the pipe and holds it in place while you work, and it supports over 200 lb.

Pipe can't plug

The internal ledge stops the pipe about 2″ below the floor surface, so it can't drop through into the dirt and plug.

Any good 5″ bit

It seals a rough hole from any good 5″ bit, SDS or diamond core.

Clean finish

The wide top lip covers chipped edges around the hole.

One part, slabs and lids

The same part fits slabs, sump lids, cleanouts and backwater valve covers, with plastic or wood lids up to 3/8″ thick.

Comes out for service

It pulls out and goes back in when the system needs work.

02

Two Ways to Install

Direct slab penetration

Concrete Core

On a concrete slab, SlabCollar goes in with no sealant and no cleaning.

  1. 01Cut a 5″ hole through the slab.
  2. 02Put SlabCollar in the hole until the lip sits on the slab.
  3. 03Push the 4″ pipe in from above until it stops.

Plastic or wood cover plate

Thin Lid (Panel)

On a plastic or wood lid up to 3/8″ thick, it goes in with no sealant either.

  1. 01Cut a 5″ hole in the lid with a wood hole saw.
  2. 02Put SlabCollar in the hole.
  3. 03Push the 4″ pipe in until it stops.
03

Tested & Compliant

ASTM D2000
RoHS
REACH SVHC
Prop 65
04

Designed by a Radon Mitigator

SlabCollar was designed by a radon mitigator who worked through every angle and millimetre, and tested many rubber hardnesses, until it fit the way mitigators actually install. It was made for one job: sealing the pipe where it passes through the slab or lid.
